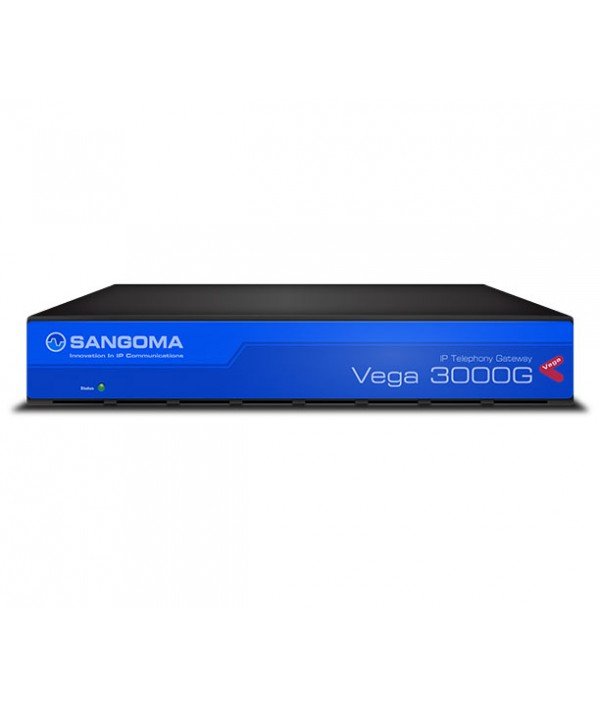

Vega 3000 24 FXS

Vega 3000 analog gateways are available with 24 FXS ports (for connection to standard analog telephones) Cavo Telco e Patch Panel non compresi

24 FXS ports; Browser-Based GUI Interface for quick and easy configuration; Sangoma Network Appliance Provisioning ( SNAP ) tool; Voice, fax, and modem support; Flexible call routing for fallback and least cost routing; Emergency PSTN backup; Interoperability with a wide range of legacy and IP equipment; SIP and H.323 support;

Interfaces VoIP

SIP; H.323 version 4; Audio codecs:

G.711 (a-law/µ-law); G.729a; G.723.1 (5.3/6.4 kbps); G.726; Clearmode; GSM (Optional);

; FAX Support – up to G3 FAX, using T.38; Modem Support – up to V.90, using G.711; 24 or 50 VoIP channels;

Telephony Interfaces

24 ports per RJ-21 connector; 600R, 900R or CTR-21 line impedance;

LAN Interfaces

2 RJ-45s, 10 BaseT/100 BaseTX, full/half duplex;

Features Telephony Features Available on FXS ports:

Call Waiting; Call Forward – Unconditional, Busy, No-Answer; Call Transfer – Blind, Consultative; 3-Way Conference; Do Not Disturb; Message Waiting Indicator – Audible, Visual; Music on Hold; Executive Barge;

Identification

Caller ID presentation – UK, DTMF, Bellcore GR30, ETSI; Caller ID screening allows connections to be accepted only from selected call sources; H.323 gatekeeper registration; SIP Registration & Digest Authentication;

Operation, Maintenance & Billing

HTTP(S) web server; RADIUS Accounting & Login; Remote firmware upgrade:

Auto code upgrade; Auto configuration upgrade;

; SNMP V1, V2 & V3; Syslog; TFTP/FTP support; VT100 – RS232; Telnet/SSH; Voice readback of IP parameters;

Routing & Numbering

Dial Planner – sophisticated call routing capabilities, standalone or gatekeeper/proxy integration; Direct Dialing In (DDI); SIP registration to multiple proxies;

Call Quality

Adaptive jitter removal; Comfort noise generation; Silence suppression; 802.1p/Q VLAN tagging; Differentiated Services (DiffServ); Type of Service (ToS); QoS statistics reporting; Echo cancellation (G.168 up to 128ms);

Security & Encryption

Media – SRTP (Optional); SIP – TLS (Optional); Management – HTTPS, SSH Telnet; Configurable user login passwords; Enhanced Network Proxy (ENP) (Optional);

Hardware Certification EMC (Class A)

EN55022; EN55024; FCC Part 15; AS/NZS3548; VCCI;

Safety EMC (Class A)

EN60950; IEC60950; UL60950; AS/NZS60950;

Telecoms

TBR21; FCC Part 68; CS-03;

Protection FXS port surge protection – K.20, K.21, GR1089

Environmental

0°..40°C; 0%..90% humidity (non–condensing);

FXS Line Length

1500ohm, up to 8km;

Indicators LED:

Power; System ready; Lifeline, FXS calls active; LAN: speed/activity;

Physical Dimensions

437mm (17.2″) x 43mm (1.7″) x 275mm (10.8″) width/height/depth; Weight: 6.5kgs; Rackmount: brackets supplied 483mm (19″) 1U;

Additional Accessories

1 x RJ21 to punch down Connector; 1 x RJ21 to RJ45 cable (1.5m);

Power

100..240 VAC, 47..63 Hz, 1..0.5 A for 24 ports or 100..240 VAC, 47..63 Hz, 2..1 A for 48 ports; -48V DC, 1.2A (Max) available subject to MOQ (Optional);

Program Storage

Code & configuration data are stored in FLASH & executed from RAM;
